Building a Hackintosh PC




Welcome to my first post! Here, I'll show you how to build a Hackintosh PC buying all components by separated and building.


Note: I show you part per part and I explain like a tutorial.





As you can see, if you don't have enough money to buy a techonological apple computer, you have a choice, build a Hackintosh PC!


A modern apple computer price is: 10.000$ USD approximate.


A Hackintosh PC price is: 1.500$ USD approximate.


So, I guess you would like to get the better choice. If is it,


Let's get started!





Here is the computer functional at 100%, I'll show you step by step the building progress.





Well, those are all the components for build the Hackintosh PC.



Thermaltake case V9 Vj4000 Series with top 23cm Fan. [89.99$ USD]

Intel Core i7 inside Processor i7/930 2,8Ghz. [289.99$ USD]

Mother board X58A-UD3R Sata 3.0 GIGABYTE Ultra Durable. [209.99$ USD]

RAM memory CORSAIR DOMINATOR DDR3 6GB. 3 modules 2GB per module. [149.99$ USD]

Power supply CORSAIR Hx 750WH [129.99$ USD]

CPU Cooler Hyper 212 Plus with thermal paste [47.95$ USD]

Hard Drive (x2) 600GB WD Sata 3 (For Mac). [69.90]

Hard Drive 1TB WD Sata 3 (For Windows 7). [69.90$ USD]

Graphics ATI RADEOM HD 6870 XFX 1GB DDR5. [203.99$ USD]

CD/DVD Burner Sony Optiarc Black. [29.45$ USD]

Operating System Mac OS X Snow Leopard 10.6. [26.35$ USD]




Right! We'll see the computer and his parts, and later we'll see the assembling step by step.

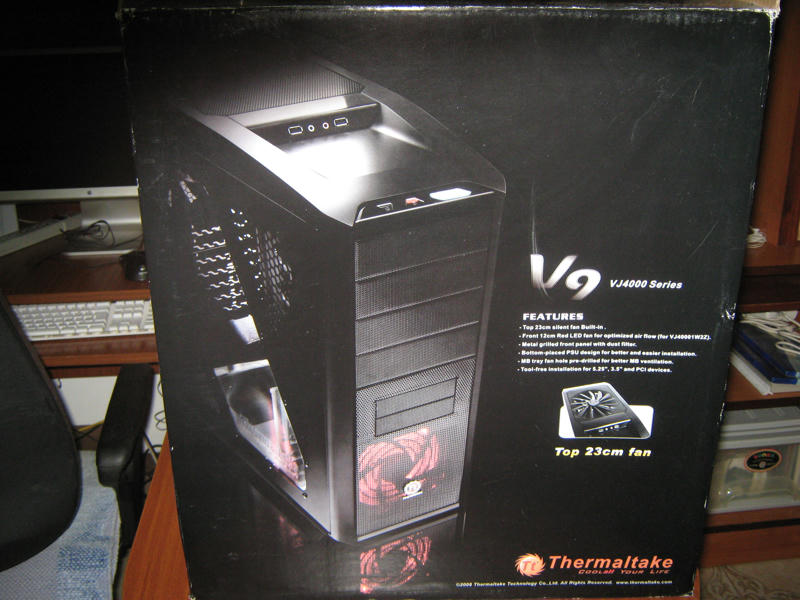

The Thermaltake Case

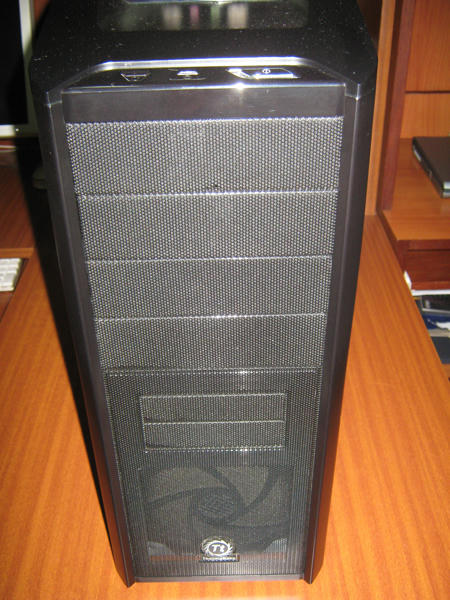

Front

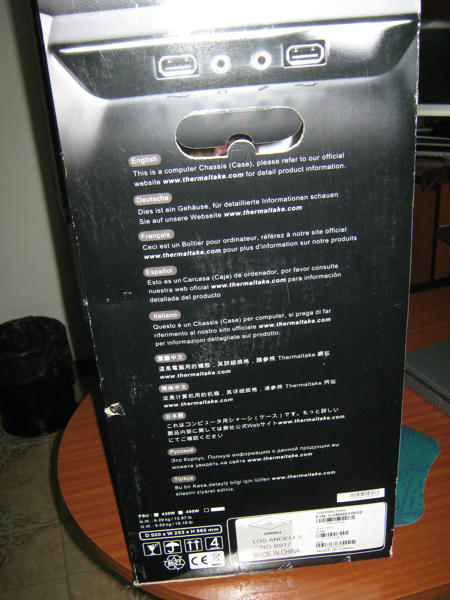

Side

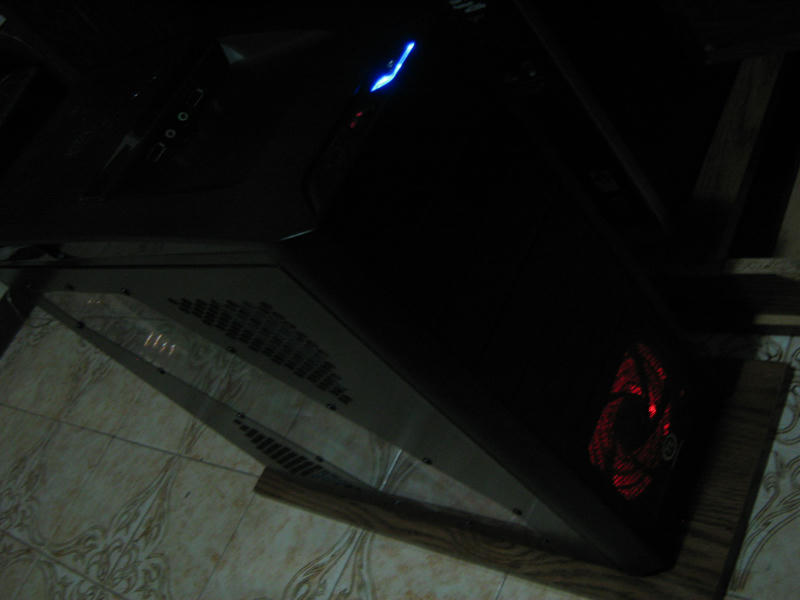

Top Fan 23cm




Front USB and headphone/microphone connectors

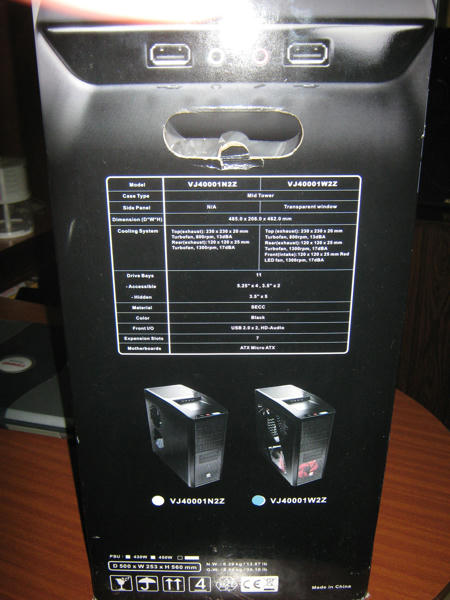

Behind





Peripheral connectors



Graphics





Power supply






Well, this was the PC finished! So, let's build right now!


Empty case









Our first step is build Cooler Master and connect at the mother board to equilibrate the cooling. Later connect our processor at the mother board socket.


Those parts should be covered by the thermal paste.


To make this procedure, we need an antistatic bracelet or you can damage the components.




The Cooler Master




The processor




Thermal paste processor




Thermal paste Cooler Master




Finally, we finished the mother board and is time to introduce into the case.


This is our mother board finished.





Cooler Master finished






Is recommended use a case with coolers and some ventilation fans. Those components produces a lot of heat.


Remember, never put your hands above the mother board and without an antistatic bracelet. You can damage some component by a short circuit.




Motherboard case model







Now is time to install the RAM, graphics and the power supply.


RAM case model




Graphics case model




Power supply case model





Now let's build the RAM, Power supply and graphics.




Graphics finished





Power supply finished




RAM finished






Finally, we've the tree previous components finished.







Now, is time to install the two hard disks.




1TB Hard Disk for Windows 7




600GB Hard Disk for MAc OS X Snow Leopard




Two Hard Disk finished.





Well, is time to turn on our Hackintosh by first time!


And is Done!





Well, our computer is totally finished! Now, is time to configure our Bios and install the Operating Systems!




Configuring Bios




Initialializing our operative systems!





Mac OS X Snow Leopard








Windows 7 64 bits






And finally, we've our super hackintosh finished and ready to use!









Note: AMD processors doesn't accept apple operating systems and Nvidia graphic cards does accept apple operating systems copies only.





Well, this was the building computer step. So the next step is the installing O.S process.


O.S installing process.


Hackintosh Mac pro installing guide




What Software is needed


iBoot [New iBoot 2.7.0] download and burn it!


OS X 10.6 or 10.6.3 Retail DVD


Multibeast 3.5.1 or Later


Mac OS X v10.6.7 Combo Update


Relevant DSDT for the Bios revision


Then


Burn the iBoot ISO to CD


Copy your DSDT file, the OSX Combo Update and Multibeast to a FAT/FAT32/HFS USB Key




If you're doing a fresh install


Boot using iBoot [Burned on DVD]


Install OS X


Reboot using iBoot


Remove the iBoot disk


Copy your downloaded DSDT file to your desktop [Not need to rename anymore]


Launch Multibeast but DON'T LET THE INSTALLER RUN!


Launch and install Mac OS X v10.6 Update [Combo, but don't click restart when it completes]


Run Multibeast with the following options




Close Multibeast


Click restart on your Mac OS X v10.6.7 Update


Watch the reboot and cross your fingers


Once in OSX have a little play around and check that your sound and thernet works. Also check that you can now get full resolution on you monitor.


Once you're happy with all that then, its time to chekc 64 bit OSX. Re-run Multibeast and only select: - Customization -> Boot option -> 64 bit Apple Boot Screen.


Reboot


Enjoy using you Hackintosh in 64 bit mode with full graphics QE/CI and all the 10.000$ that you has saved!





Well, this is the end. I hope you enjoy building a Hackintosh yourself!


Coming soon, I'll post many interesting things about computers!





Plus


This is my Xeon dual core processor Mac pro [Year 2006]











I hope you enjoy it!
